GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic

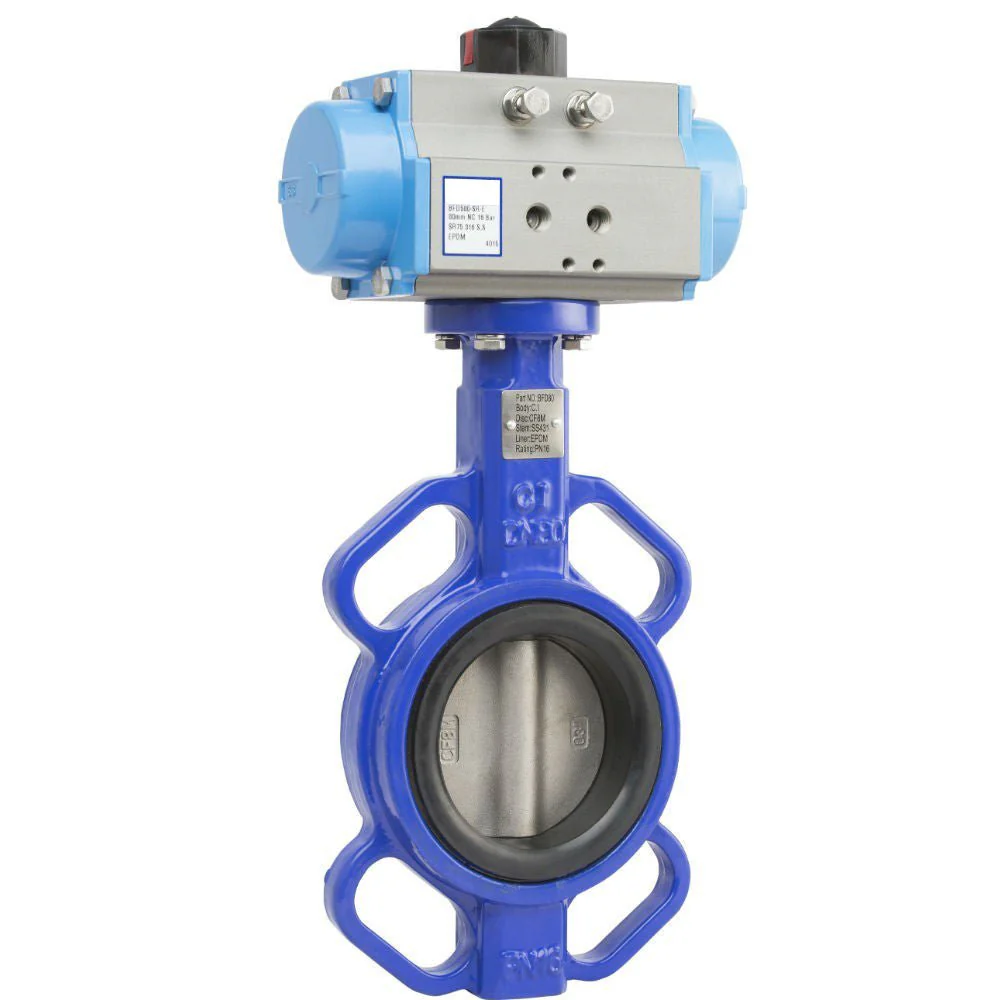

Product image 1
1 / 6
+1

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic

Overview

The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a double acting pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pionion design) anodised aluminium pneumatic actuator.

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic

Overview

The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a double acting pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pionion design) anodised aluminium pneumatic actuator.

Select Size
Select Seat
From $66.00

Original: $220.00

-70%
GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic—

$220.00

$66.00

Description

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic

Overview

The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a double acting pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pionion design) anodised aluminium pneumatic actuator.
