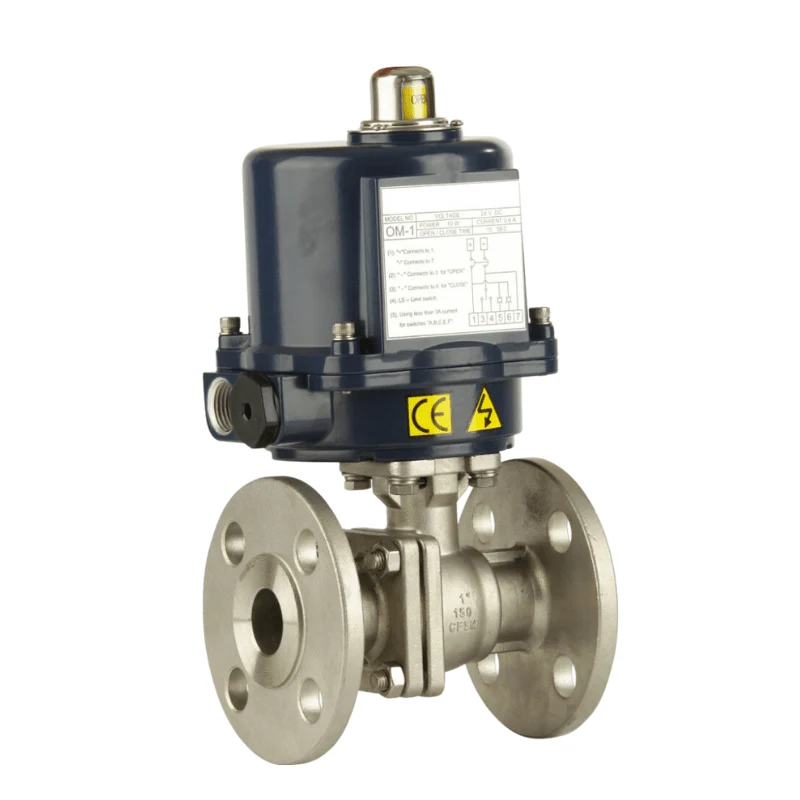

GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe

Product image 1
1 / 5

GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe

GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe

Overview

    Two piece two way ANSI 150 lb flanged fire safe approved ball valve, electric operation. 316 Stainless Steel or Cast Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 218781. Direct coupled IP67 electric actuator with visual indicator and extra limit switches. Media temp -20°C to 180°C.

    GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe

    Overview

      Two piece two way ANSI 150 lb flanged fire safe approved ball valve, electric operation. 316 Stainless Steel or Cast Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 218781. Direct coupled IP67 electric actuator with visual indicator and extra limit switches. Media temp -20°C to 180°C.

      Select Size
      Select Body Material
      From $184.80

      Original: $616.00

      -70%
      GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe—

      $616.00

      $184.80

      Description

      GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe

      Overview

        Two piece two way ANSI 150 lb flanged fire safe approved ball valve, electric operation. 316 Stainless Steel or Cast Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 218781. Direct coupled IP67 electric actuator with visual indicator and extra limit switches. Media temp -20°C to 180°C.
