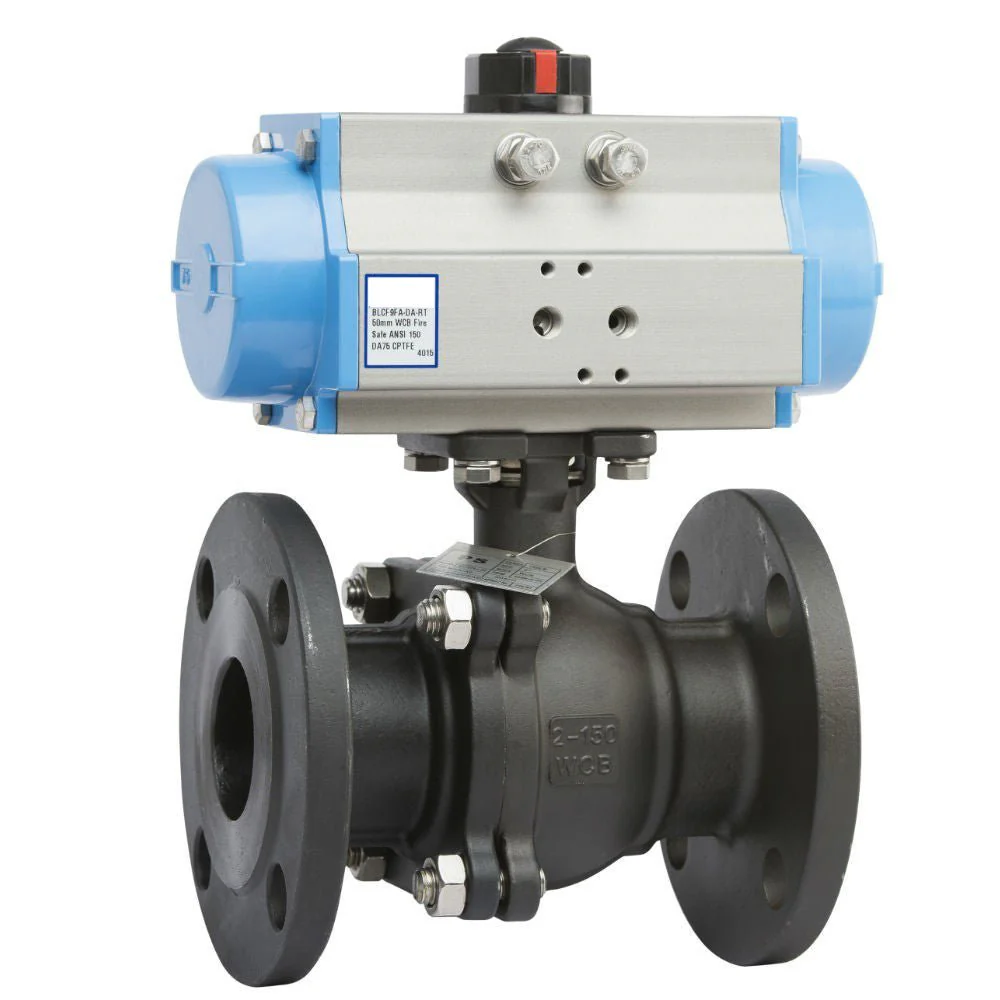

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe

Overview

    High quality 316 Stainless Steel or Carbon Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.

    GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe

    Overview

      High quality 316 Stainless Steel or Carbon Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.

      Select Size
      Select Body Material
      From $67.80

      Original: $226.00

      -70%
      GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe—

      $226.00

      $67.80

      Description

      GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe

      Overview

        High quality 316 Stainless Steel or Carbon Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.
