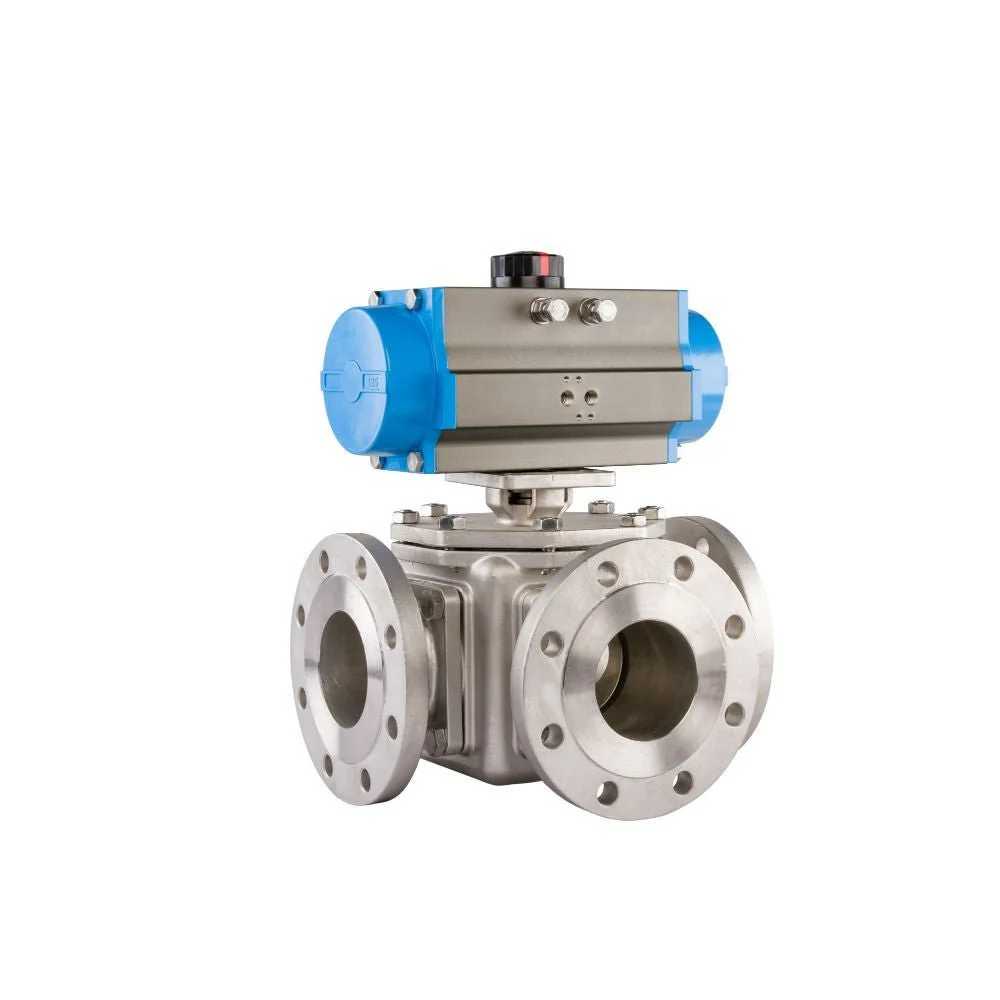

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA
GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA
Overview
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA
Overview
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
Original: $396.00
-70%$396.00
$118.80Description
GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way BLS3FADA
Overview
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
